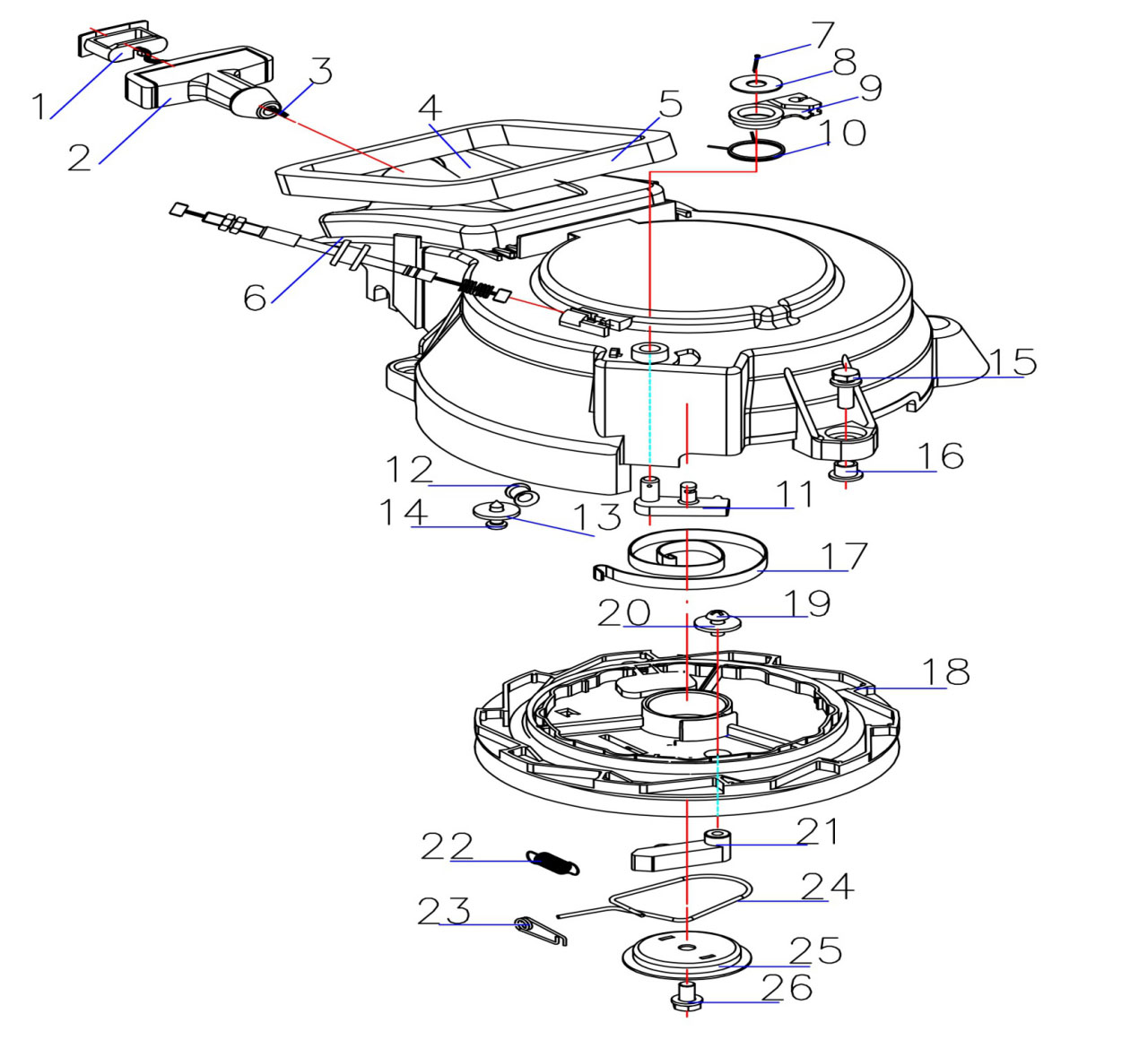

| 沧龙航迹 T9.9 启动罩 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用配件 |
| 1 | C3060502 | T20-01.01.09 | 手柄盖 | 1 | 1 | 6G1-15779-00 |
| 2 | C3060501 | T20-01.01.08.00 | 启动手柄组件 | 1 | 1 | 6G1-15755-00 |
| 3 | C3090401 | T15-01.01.17 | 启动绳φ5X2000 | 1 | 2 | |
| 4 | C3060401 | T15-01.01.01.00 | 启动罩外壳 | 1 | 1 | 63V-15711-01 |
| 5 | C3050440 | T15-01.01.05 | 启动罩减震套 | 1 | 1 | 63V-15762-00 |
| 6 | C3090402 | T15-01.01.16.00 | 制动钢索组件 | 1 | 1 | 63V-15770-01 |
| 7 | C4010703 | GB/T91 | 开口销φ1.2X16 | 1 | 10 | 91490-16018 |
| 8 | C3070402 | T15-01.01.10 | 垫片 | 1 | 10 | 63V-15726-00 |
| 9 | C3060404 | T15-01.01.09 | 钢索固定环 | 1 | 2 | 63V-15748-00 |
| 10 | C3080402 | T15-01.01.08 | 制动器扭簧 | 1 | 2 | 63V-15734-00 |
| 11 | C3060403 | T15-01.01.07 | 制动器 | 1 | 2 | 63V-15794-00 |
| 12 | C3070401 | T15-01.01.02 | 启动绳卷轴 | 1 | 2 | 63V-15764-00 |
| 13 | C4010516 | GB/T5287 | 特大平垫5 | 1 | 5 | |
| 14 | C4010346 | GB/T845 | 十字槽盘头自攻螺钉ST4.2X13 | 1 | 4 | |
| 15 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 3 | 10 | |
| 16 | C3020401 | T15-01.01.03 | 启动罩垫管 | 3 | 3 | 90387-06M05 |
| 17 | C3080401 | T15-01.01.06 | 涡形弹簧 | 1 | 2 | 63V-15713-00 |
| 18 | C3060402 | T15-01.01.04 | 启动轮 | 1 | 2 | 63V-15714-00 |
| 19 | C4010314 | GB/T818 | 十字槽盘头螺钉M5X10 | 1 | 10 | |
| 20 | C4010516 | GB/T5287 | 特大平垫5 | 1 | 10 | |
| 21 | C3060405 | T15-01.01.11 | 驱动臂 | 1 | 1 | 63V-15741-00 |
| 22 | C3080403 | T15-01.01.12 | 回位弹簧 | 1 | 2 | 63V-15767-01 |
| 23 | C3080404 | T15-01.01.13 | 驱动臂弹簧 | 1 | 2 | 63V-15784-01 |
| 24 | C3080405 | T15-01.01.15 | 压板夹簧 | 1 | 2 | 63V-15705-01 |
| 25 | C3070403 | T15-01.01.14 | 启动压板 | 1 | 1 | 63V-15716-00 |
| 26 | C4010202 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X12 | 1 | 10 | |
| C2040003 | T15-01.01.00.00 | 启动罩总成 | 1 | 1 | ||
| 沧龙航迹 T9.9 发动机 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3020405 | T15-01.03.16 | 飞轮螺母 | 1 | 1 | 90170-12066 |
| 2 | C4010515 | GB/T97 | 平垫12 | 1 | 10 | 90201-12472 |
| 3 | C3030408 | T15-01.03.15 | 飞轮组件 | 1 | 1 | 63V-85550-11 |
| 4 | C4010209 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X35 | 2 | 4 | 90105-06M68 |
| 5 | C3030401 | T15-01.03.04 | 充电线圈 | 1 | 1 | 63V-85520-01 |
| 6 | C3080412 | T15-01.04.03 | 扭簧B | 2 | 2 | 90387-06M53 |
| 7 | C3030402 | T15-01.03.05 | 照明线圈 | 1 | 1 | 63V-85533-00 |
| 8 | C3080411 | T15-01.04.02 | 扭簧A | 2 | 2 | 90387-06M24 |
| 9 | C3070404 | T15-01.03.01 | 固定板 | 1 | 1 | 63V-41611-00 |
| 10 | C4010315 | GB/T818 | 十字槽盘头螺钉M5X12 | 2 | 4 | |
| 11 | C3030404 | T15-01.03.08 | 触发器 | 1 | 1 | 63V-85580-01 |
| 12 | C3030403 | T15-01.03.07 | 安装座 | 1 | 1 | |
| 13 | C4010403 | GB/T6170 | 六角螺母M5 | 2 | 4 | |
| 14 | C4010702 | GB/T91 | 开口销φ1.2X12 | 1 | 10 | 90468-10005 |
| 15 | C3070405 | T15-01.03.09 | 定位卡 | 1 | 1 | 63V-41223-00 |
| 16 | C3080406 | T15-01.03.10 | L件螺杆 | 1 | 1 | 63V-41238-00 |
| 17 | C4010403 | GB/T6170 | 六角螺母M5 | 1 | 4 | 95380-05700 |
| 18 | C3060503 | T20-01.04.07 | 螺纹连杆接头 | 1 | 2 | 6H4-41237-00 |
| 19 | C3050408 | T15-01.06.25 | 曲轴上油封 | 1 | 2 | 93110-23M00 |
| 20 | C3070409 | T15-01.06.26 | 轴承盖板 | 2 | 2 | 63V-11445-00 |
| 21 | C3040404 | T15-01.06.28.00 | 曲轴连杆组件 | 1 | 1 | 63V-11400-01 |
| 22 | C3040411 | T15-01.06.29 | 曲轴半圆键 | 1 | 4 | 90280-05013 |
| 23 | C3070410 | T15-01.06.27 | 曲轴大垫圈 | 1 | 2 | 90201-46M29 |
| 24 | C3050407 | T15-01.06.23 | 下油封壳体O型圈 | 1 | 2 | 93210-46M16 |
| 25 | C3050405 | T15-01.06.21 | 曲轴下油封 | 2 | 2 | 93101-25018 |
| 26 | C3050406 | T15-01.06.22 | 驱动轴上油封 | 2 | 2 | 93101-13018 |
| 27 | C204C3010406 | T15-01.06.20 | 曲轴下油封壳体(喷漆) | 1 | 1 | 63V-15396-01-94 |
| 28 | C4010204 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X16 | 1 | 2 | 97095-06016 |
| 29 | C3090407 | T15-05.00.12 | 排气管密封垫 | 1 | 2 | 63V-41133-A1 |
| 30 | C204C3010407 | T15-05.00.11 | 排气管(喷漆) | 1 | 1 | 65F-41131-00-5B |
| 31 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 5 | 10 | 97095-06020 |
| 32 | C3050411 | T15-05.00.13 | 排气管减震圈 | 1 | 2 | 63V-41135-00 |
| 33 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 2 | 10 | 97095-06018 |
| 34 | C3030406 | T15-01.03.12 | 高压包A | 1 | 1 | 63V-85570-00 |
| 35 | C3030407 | T15-01.03.13 | 高压包B | 1 | 1 | |
| 36 | C204C3010401 | T15-01.06.01.00 | 箱体组件(喷漆) | 1 | 1 | 63V-15100-02-1S |
| 37 | C4010406 | GB/T6170 | 六角螺母M8 | 1 | 2 | 95380-08600 |
| 38 | C4010513 | GB/T97 | 平垫8 | 2 | 10 | |
| 39 | C3070411 | T15-01.07.03 | 燃油滤清器支架 | 1 | 1 | 682-24566-01 |
| 40 | C3060504 | T20-01.07.05.00 | 燃油滤清器组件 | 1 | 1 | 61N-24560-00 |
| 41 | C3050420 | T15-01.07.02 | 油管 | 2 | 1 | 90445-09M00 |
| 42 | C3080502 | T20-01.07.03 | 管夹9 | 2 | 10 | 90467-08004 |
| 43 | C4010202 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X12 | 1 | 10 | 97013-06010 |
| 44 | C4010207 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X30 | 13 | 10 | 90119-06MA4 |
| 45 | C3020407 | T15-01.06.07 | 水管圆接头 | 1 | 1 | 676-11372-00 |
| 46 | C3050404 | T15-01.06.08 | 橡胶水管 | 1 | 1 | 90445-09104 |
| 47 | C204C3010403 | T15-01.06.05 | 排气外盖(喷漆) | 1 | 1 | 63V-41113-00-1S |
| 48 | C3090404 | T15-01.06.06 | 排气盖密封垫 | 2 | 2 | 63V-41112-A0 |
| 49 | C204C3010402 | T15-01.06.04 | 排气内盖(喷漆) | 1 | 1 | 63V-41111-00-1S |
| 50 | C4010371 | GB/T819 | 十字槽沉头螺钉M5X15 | 1 | 10 | |
| 51 | C3040402 | T15-01.06.15 | 箱体阳极 | 1 | 1 | 682-11325-00 |
| 52 | C3090405 | T15-01.06.09 | 气缸垫 | 1 | 2 | 63V-11181-A2 |
| 53 | C204C3010404 | T15-01.06.10 | 气缸盖(喷漆) | 1 | 1 | 6E7-11111-01-1S |
| 54 | C4010130 | GB/T16674 | 六角头法兰面螺栓M7X35 | 11 | 10 | |
| 55 | C3030409 | T15-01.06.14 | 火花塞 | 2 | 2 | 94702-00217 |
| 56 | C3040501 | T20-01.06.37 | 节温器组件(55±5°) | 1 | 1 | 6E5-12411-30 |
| 57 | C3070407 | T15-01.06.12 | 节温器垫圈 | 1 | 2 | 90201-16M03 |
| 58 | C3090406 | T15-01.06.11 | 节温器垫 | 1 | 2 | 682-12414-A1 |
| 59 | C204C3010405 | T15-01.06.13 | 节温器盖(喷漆) | 1 | 1 | 682-12413-00-1S |
| 60 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 4 | 10 | |
| 61 | C3090403 | T15-01.06.02 | 钢索 | 1 | 1 | |
| 62 | C4010201 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X10 | 1 | 10 | |
| 63 | C3030405 | T15-01.03.11 | 点火控制器 | 1 | 1 | 63V-85540-01 |
| 64 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 2 | 10 | |
| 65 | C3020503 | T20-02.00.13 | 定位销φ6X12 | 2 | 10 | 93606-12019 |
| 66 | 无号码 | T15-01.06.16 | 箱体盖 | 1 | 1 | |
| 67 | C4010238 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M8X60 | 6 | 6 | |
| 68 | C3040403 | T15-01.06.19.00 | 进气阀座组件 | 1 | 1 | 63V-13610-10 |
| 69 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 3 | 10 | |
| 70 | C3040401 | T15-01.02.07.00 | 化油器组件 | 1 | 1 | 63V-14301-00 |
| 71 | C3020402 | T15-01.02.03 | 带肩垫管 | 2 | 2 | 90387-06M15 |
| 72 | C3050401 | T15-01.02.02 | 消音器O形圈 | 1 | 2 | 93210-35M86 |
| 73 | C3060406 | T15-01.02.01.00 | 进气消音器组件 | 1 | 1 | 63V-14440-00 |
| 74 | C4010222 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X115 | 2 | 4 | |
| 75 | C3050402 | T15-01.02.04 | 橡胶闷头 | 1 | 2 | 90480-12M25 |
| 76 | C3060407 | T15-01.02.05 | 阻风门摇臂 | 1 | 1 | 63V-41252-00 |
| 77 | C3060408 | T15-01.02.06 | 连杆接头 | 1 | 1 | 661-41262-02 |
| 78 | C3080414 | T15-01.04.11 | 化油器连杆 | 1 | 2 | 63V-41257-00 |
| 79 | C4010516 | GB/T5287 | 特大平垫5 | 1 | 4 | 90201-05M09 |
| 80 | C4010349 | GB/T845 | 十字槽盘头自攻螺钉ST4.8X16 | 1 | 4 | 90164-05M03 |
| 81 | C3070412 | T15-01.04.01 | 安装架 | 1 | 1 | 63V-14497-02 |
| 82 | C3050410 | T15-01.04.10 | 橡胶限位块 | 1 | 2 | 689-44194-00 |
| 83 | C3080411 | T15-01.04.02 | 扭簧A | 1 | 2 | 90508-16M37 |
| 84 | C3060415 | T15-01.04.05 | 磁电机控制杠杆 | 1 | 2 | 63V-41631-00 |
| 85 | C4010327 | GB/T818 | 十字槽盘头螺钉M6X30 | 1 | 10 | |
| 86 | C3080413 | T15-01.04.06 | 磁电机压缩弹簧 | 1 | 2 | 90501-12M16 |
| 87 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | 10 | |
| 88 | C3060416 | T15-01.04.07 | 螺纹盖 | 1 | 4 | 688-44194-00 |
| 89 | C3080412 | T15-01.04.03 | 扭簧B | 1 | 5 | 90508-20M38 |
| 90 | C3060418 | T15-01.04.09 | 化油器连杆端轮 | 1 | 2 | 63V-41283-01 |
| 91 | C3060417 | T15-01.04.08 | 油门钢索端轮 | 1 | 1 | 63V-41638-00 |
| 92 | C3020408 | T15-01.04.04 | 安装架衬套 | 1 | 2 | 90387-06M50 |
| 93 | C4010215 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X65 | 1 | 5 | |
| 94 | C4010201 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X10 | 1 | 10 | |
| 95 | C3080503 | T20-01.04.05 | R型销 | 1 | 2 | |
| 96 | C3080421 | T15-01.05.12 | 变档手柄连杆 | 1 | 1 | |
| 97 | C3060410 | T15-01.05.01.00 | 变档杠杆组件 | 1 | 1 | 63V-44123-01 |
| 98 | C3080407 | T15-01.05.04 | 上变档连杆 | 1 | 1 | 63V-44143-01 |
| 99 | C3060412 | T15-01.05.03 | 变档连杆固定块 | 1 | 2 | 63V-44122-01 |
| 100 | C3070408 | T15-01.06.17 | 变档限位板 | 1 | 2 | 63V-44116-00 |
| 101 | C4010202 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X12 | 1 | 10 | |
| 102 | C3060413 | T15-01.05.05.00 | 变档定位块 | 1 | 2 | 63V-44125-00 |
| 103 | C4010511 | GB/T97 | 平垫5 | 3 | 10 | |
| 104 | C4010315 | GB/T818 | 十字槽盘头螺钉M5X12 | 3 | 10 | |
| 105 | C3060411 | T15-01.05.02 | 变档摇臂 | 1 | 1 | 63V-44122-01 |
| 106 | C3060408 | T15-01.02.06 | 连杆接头 | 1 | 2 | 661-41262-02 |
| 107 | C3080410 | T15-01.05.11 | 钢索端套扭簧 | 1 | 2 | 90508-08M39 |
| 108 | C3060414 | T15-01.05.07 | 钢索端套 | 1 | 2 | 63V-15746-10 |
| 109 | C3060408 | T15-01.02.06 | 连杆接头 | 1 | 2 | 661-41262-02 |
| 110 | C3080409 | T15-01.05.10 | 摇臂杠杆 | 1 | 2 | 6L2-15747-00 |
| 111 | C3020406 | T15-01.05.09 | 钢索端套垫管 | 1 | 2 | 90387-06M06 |
| 112 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 1 | 10 | |
| 113 | C4010210 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X40 | 2 | 10 | |
| 114 | C3020502 | T20-01.06.02 | 直角气嘴 | 2 | 2 | 650-14485-03 |
| 115 | C3050403 | T15-01.06.03 | 橡胶管 | 2 | 2 | 90445-07M08 |
| 116 | C3080501 | T20-01.06.04 | 管夹7 | 4 | 10 | 90467-06016 |
| 117 | C3020504 | T20-01.06.03 | 直通气嘴 | 2 | 2 | |
| 118 | C3080414 | T15-01.04.11 | 化油器连杆 | 1 | 2 | |
| 119 | C3060408 | T15-01.02.06 | 连杆接头 | 1 | 2 | 661-41262-02 |
| 120 | C3080408 | T15-01.05.06 | 油门连杆 | 1 | 2 | 63V-41211-00 |
| 121 | C4010501 | GB/T848 | 小平垫6 | 1 | 10 | |
| 122 | C3090418 | T15-01.06.24 | 机体密封垫 | 1 | 2 | 63V-45113-A1 |
| C2040002 | T15 | 发动机总成 | 1 | |||
| 沧龙航迹 T9.9 操舵托架 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3020506 | T20-03.00.01 | 双头螺柱螺母 | 2 | 2 | 90185-22043 |
| 2 | C3070414 | T15-03.00.02 | 孔板 | 1 | 1 | 6J8-43113-01 |
| 3 | C3020410 | T15-03.00.01 | 双头螺柱 | 1 | 1 | 63W-43131-01 |
| 4 | C3010409 | T15-03.01.01 | 左托架 | 1 | 1 | 63V-43112-07-4D |
| 5 | C3090408 | T15-00.00.05 | 钢丝连接线 | 1 | 1 | 66M-82148-00 |
| 6 | C4010323 | GB/T818 | 十字槽盘头螺钉M6X12 | 1 | 10 | 97885-06008 |
| 7 | C3060507 | T20-03.00.04 | 尼龙衬圈 | 2 | 2 | 90202-22M54 |
| 8 | C3060508 | T20-03.00.05 | 托架阻尼圈 | 2 | 2 | 90386-22M94 |
| 9 | C3020414 | T15-03.01.03 | 扁头螺栓 | 4 | 4 | 90109-06M84 |
| 10 | C3070415 | T15-03.01.04 | 制动板 | 2 | 2 | 63V-43181-00 |
| 11 | C3070503 | T20-03.01.04 | 夹紧盘 | 2 | 2 | 648-43114-01 |
| 12 | C3020413 | T15-03.01.02 | 艉板夹紧螺栓 | 2 | 2 | 6E7-43116-00 |
| 13 | C4010916 | GB/T1015 | 半沉头半空心铆钉φ4X18 | 2 | 4 | 90243-04M01 |
| 14 | C3010501 | T20-03.01.02 | 锁紧手柄 | 2 | 2 | 6E0-43118-01 |
| 15 | C3020412 | T15-03.00.04 | 托架锁紧套管 | 1 | 2 | 90387-06M13 |
| 16 | C3020411 | T15-03.00.03 | 托架锁紧螺栓 | 1 | 2 | 90101-06M29 |
| 17 | C3080420 | T15-03.05.00 | 角度插销组件 | 1 | 1 | 689-43160-00 |
| 18 | C4010210 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X40 | 1 | 10 | 90119-06M05 |
| 19 | C3020418 | T15-01.05.15 | 手柄带肩垫管 | 1 | 2 | 90387-06M86 |
| 20 | C3070421 | T15-01.05.14 | 变档手柄波垫 | 1 | 2 | 90206-15M18 |
| 21 | C3060426 | T15-01.05.13 | 变档手柄 | 1 | 2 | 63V-44111-02 |
| 22 | C3080421 | T15-01.05.12 | 变档手柄连杆 | 1 | 2 | 63V-44124-02 |
| 23 | C204C3010412 | T15-03.04.01.00 | 操舵托架组件(喷漆) | 1 | 1 | 63V-42511-04-4D |
| 24 | C3070422 | T15-03.04.02 | 操舵托架上减磨垫 | 1 | 1 | 90209-40008 |
| 25 | C3060427 | T15-03.04.03 | 操舵托架锁紧圈 | 1 | 2 | 65F-42537-00 |
| 26 | C3070423 | T15-03.02.17 | 锁紧圈磨擦片 | 1 | 2 | 63V-42528-00 |
| 27 | C3050422 | T15-03.02.18 | 锁紧螺栓密封套 | 1 | 2 | 689-43373-01 |
| 28 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 1 | 10 | 90105-06M07 |
| 29 | C3060423 | T15-03.02.03 | 起翘手柄衬套 | 1 | 2 | 90387-07M07 |
| 30 | C3060424 | T15-03.02.04 | 起翘手柄减磨垫 | 1 | 10 | 90202-07M60 |
| 31 | C3070416 | T15-03.02.02.00 | 起翘手柄组件 | 1 | 1 | 66M-43630-01 |
| 32 | C3050502 | T20-03.02.18 | 起翘手柄橡胶套 | 1 | 2 | 682-43318-01 |
| 33 | C3010410 | T15-03.02.01 | 旋转托架 | 1 | 1 | 63V-43311-03-4D |
| 34 | C4010330 | GB/T818 | 十字槽盘头螺钉M8X10 | 2 | 4 | 97885-08010 |
| 35 | C3020416 | T15-03.02.12 | 角度定位拉簧轴 | 1 | 1 | 66R-43611-00 |
| 36 | C3060425 | T15-03.02.07 | 支撑架销减磨垫 | 1 | 2 | 90386-07M95 |
| 37 | C3070418 | T15-03.02.09 | 角度支撑架 | 1 | 1 | 66M-43350-01 |
| 38 | C4010802 | GB/T896 | 开口挡圈5 | 1 | 10 | 93430-04M03 |
| 39 | C3070417 | T15-03.02.05 | 角度定位件 | 1 | 1 | 63V-43641-01 |
| 40 | C4010801 | GB/T896 | 开口挡圈4 | 1 | 10 | 99080-05600 |
| 41 | C3080416 | T15-03.02.06 | 起翘手柄拉簧 | 1 | 1 | 90507-20M00 |
| 42 | C4010312 | GB/T818 | 十字槽盘头螺钉M5X6 | 1 | 5 | 90157-05014 |
| 43 | C3080417 | T15-03.02.10 | 角度定位锁杆 | 1 | 2 | 66R-43617-00 |
| 44 | C3020415 | T15-03.02.08 | 角度支撑架销 | 1 | 2 | 63V-43659-00 |
| 45 | C3080418 | T15-03.02.11 | 角度定位拉簧 | 1 | 1 | 63V-43656-00 |
| 46 | C3070419 | T15-03.02.13 | 角度定位内架 | 1 | 1 | 63V-43614-10 |
| 47 | C3070420 | T15-03.02.14 | 角度定位外架 | 1 | 1 | 66R-43615-00 |
| 48 | C4010801 | GB/T896 | 开口挡圈4 | 1 | 10 | 99080-05600 |
| 49 | C3020417 | T15-03.02.15 | 角度定位轴 | 1 | 2 | 66R-43611-00 |
| 50 | C4010801 | GB/T896 | 开口挡圈4 | 1 | 10 | 93430-04M03 |
| 51 | C3020534 | JB/T7940.1 | 直通式压注油杯M6 | 1 | 2 | 93700-06M03 |
| 52 | C3090503 | T20-00.00.07 | 钢丝连接线 | 1 | 2 | 63V-82127-00 |
| 53 | C3060428 | T15-03.04.04 | 操舵托架内衬套 | 1 | 2 | 90386-30048 |
| 54 | C3050421 | T15-03.04.05 | 操舵托架O型圈 | 1 | 2 | 93210-29M94 |
| 55 | C3060429 | T15-03.04.06 | 操舵托架下减磨垫 | 1 | 2 | 90386-30M60 |
| 56 | C4010418 | GB/T6177 | 六角头法兰面螺母M6 | 4 | 10 | 90179-06M28 |
| 58 | C204C3010421 | T15-00.00.01 | 减震器外壳(喷漆) | 1 | 1 | 63V-44551-01-4D |
| 59 | C3050441 | T15-00.00.02 | 减震块A | 2 | 2 | 682-44555-00 |
| 60 | C3050442 | T15-00.00.03 | 减震块B | 1 | 2 | 63V-44557-00 |
| 61 | C3090503 | T20-00.00.07 | 钢丝连接线 | 1 | 1 | 63V-82127-00 |
| 62 | C4010217 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X75 | 2 | 4 | 97075-06075 |
| 63 | C4010213 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X55 | 2 | 4 | 97075-06055 |
| 64 | C3010411 | T15-03.03.01 | 右托架 | 1 | 1 | 63V-43111-06-4D |
| 65 | C4010413 | GB/T889 | 非金属嵌件六角锁紧螺母M6 | 1 | 5 | 95380-06700 |
| 66 | C4010512 | GB/T97 | 平垫6 | 1 | 10 | 92995-06600 |
| 67 | C3080419 | T15-03.02.16 | 角度定位扭簧 | 1 | 2 | 90508-18M41 |
| C2040010 | T15-03.00.00.00 | 夹紧托架(喷漆) | 1 | |||
| 沧龙航迹 T9.9 操舵手柄 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3050503 | T20-04.00.01 | 油门手柄橡胶套 | 1 | 1 | 6G1-42177-00 |
| 2 | C4010357 | GB/T820 | 十字槽半沉头螺钉M5X25 | 1 | 10 | 90149-05M13 |
| 3 | C3060509 | T20-04.00.02 | 油门手柄 | 1 | 1 | 664-42119-00 |
| 4 | C4010344 | GB/T845 | 十字槽盘头自攻螺钉ST2.2X4.5 | 1 | 10 | |
| 5 | C3090502 | T20-04.00.03 | 油门标牌 | 1 | 1 | |
| 6 | C4010514 | GB/T97 | 平垫10 | 2 | 10 | 92903-10600 |
| 7 | C3080504 | T20-04.00.04 | 油门手柄压缩弹簧 | 1 | 1 | 90501-23215 |
| 8 | C3060510 | T20-04.00.05 | 尼龙衬套 | 1 | 1 | 90386-08032 |
| 9 | C3060431 | T15-04.01.00 | 节气门杆组件 | 1 | 1 | 6G1-42138-01 |
| 10 | C3090410 | T15-04.00.06 | 油门钢索 | 2 | 2 | 6L2-26301-01 |
| 11 | C204C3010413 | T15-04.00.01 | 操舵手柄(喷漆) | 1 | 1 | 63V-42111-01-4D |
| 12 | C204C3090409 | T15-04.00.02 | 阻力调整旋钮(喷漆) | 1 | 1 | 6G1-42125-01 |
| 13 | C3060430 | T15-04.00.03 | 锁紧块 | 1 | 2 | 6G1-42126-00 |
| 14 | C4010702 | GB/T91 | 开口销φ1.2X12 | 1 | 10 | |
| 15 | C3030410 | T15-04.00.05 | 急停开关组件 | 1 | 1 | 65W-82575-01 |
| 16 | C4010314 | GB/T818 | 十字槽盘头螺钉M5X10 | 2 | 2 | 97885-05012 |
| 17 | C3070424 | T15-04.00.04 | 节气门杆压板 | 1 | 1 | 6E0-42159-02 |
| 18 | C3060432 | T15-04.00.07 | 操舵手柄衬套（长） | 1 | 1 | 90386-34M97 |
| 19 | C3070425 | T15-04.00.08 | 操舵手柄波垫 | 1 | 2 | 90206-36M21 |
| 20 | C3060433 | T15-04.00.09 | 操舵手柄垫圈 | 1 | 2 | 90202-36M55 |
| 21 | C3020419 | T15-04.00.12 | 操舵手柄双头螺柱 | 2 | 2 | 90116-08016 |
| 22 | C3060434 | T15-04.00.10 | 操舵手柄衬套（短） | 1 | 2 | 90386-33M96 |
| 23 | C3070426 | T15-04.00.11 | 操舵手柄压板 | 1 | 1 | 6G1-42131-02 |
| 24 | C4010414 | GB/T889 | 非金属嵌件六角锁紧螺母M8 | 1 | 2 | 90185-08057 |
| C2040006 | T15-04.00.00.00 | 操舵手柄总成 | 1 | |||
| 沧龙航迹 T9.9 底座 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3060506 | T20-02.00.12 | 锁紧手柄 | 1 | 1 | |
| 2 | C3020505 | T20-02.00.10 | 锁紧手柄轴 | 2 | 2 | |
| 3 | C4010702 | GB/T91 | 开口销φ1.2X12 | 2 | 10 | |
| 4 | C3060505 | T20-02.00.11 | 锁紧手柄连接件 | 1 | 1 | |
| 5 | C3070502 | T20-02.00.09 | 锁紧手柄支架 | 1 | 1 | |
| 6 | C4010202 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X12 | 1 | 10 | |
| 7 | C204C3010408 | T15-02.00.01 | 底座(喷漆) | 1 | 1 | |
| 8 | C3060421 | T15-02.00.10 | 水嘴 | 1 | 1 | 6BL-44391-00 |
| 9 | C3050416 | T15-02.00.09 | 前操变档橡胶闷头 | 2 | 2 | 6G1-42748-00 |
| 10 | C3020409 | T15-02.00.11 | 减震垫垫管 | 4 | 4 | 90387-06034 |
| 11 | C3050417 | T15-02.00.12 | 底座减震垫 | 4 | 4 | 90480-15M31 |
| 12 | C3060422 | T15-02.00.15 | 油门钢索固定夹 | 1 | 1 | 90465-25M57 |
| 13 | C3050419 | T15-02.00.14 | 变档连杆护套 | 1 | 1 | 682-42727-00 |
| 14 | C3050418 | T15-02.00.13 | 外接水管橡胶闷头 | 2 | 2 | |
| 15 | C3050415 | T15-02.00.05 | 拉杆护套橡胶垫 | 1 | 1 | 6J8-41274-00 |
| 16 | C3060419 | T15-02.00.06 | 阻风门拉杆护套 | 1 | 1 | 689-41273-00 |
| 17 | C3080415 | T15-02.00.08 | 阻风门摇臂连杆 | 1 | 1 | |
| 18 | C3060420 | T15-02.00.07 | 阻风门拉杆 | 1 | 1 | 6H4-41271-01 |
| 19 | C3050413 | T15-02.00.03 | 前操油门橡胶闷头 | 1 | 1 | 682-42724-00 |
| 20 | C3050414 | T15-02.00.04 | 电瓶线橡胶闷头 | 1 | 1 | 682-42725-02 |
| 21 | C3050412 | T15-02.00.02 | 手柄连杆橡胶护套 | 1 | 1 | 63V-42726-00 |
| 22 | C3050501 | T20-01.07.02 | 燃油管插头护套 | 1 | 1 | |
| 23 | C3090501 | T20-01.07.01.00 | 燃油管插头组件 | 1 | 1 | 6G1-24304-02 |
| 24 | C3070413 | T15-01.07.01 | 燃油插头固定板 | 1 | 1 | 63V-24396-01 |
| 25 | C4010207 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X30 | 1 | 2 | |
| 26 | C3080502 | T20-01.07.03 | 管夹9 | 1 | 10 | |
| 27 | C3050420 | T15-01.07.02 | 油管 | 1 | 1 | |
| 28 | C4010206 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X25 | 4 | 4 | |
| C2040007 | T15-02.00.00.00 | 底座总成 | 1 | 1 | ||
| 沧龙航迹 T9.9 曲轴 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3040404 | T15-01.06.28.00 | 曲轴连杆组件 | 1 | 1 | 63V-11400-01 |
| 2 | C3040410 | T15-01.06.28.16 | 滚针盖板 | 4 | 1 | 90201-14377 |
| 3 | C3040502 | T20-01.06.10 | 密排滚针 | 50 | 50 | 93602-14104 |
| 4 | C3040409 | T15-01.06.28.15 | 活塞销卡簧 | 4 | 4 | 93450-15023 |
| 5 | C3040408 | T15-01.06.28.14 | 活塞销 | 2 | 2 | 634-11633-00 |
| 6 | C3040405 | T15-01.06.28.11 | 活塞 | 2 | 2 | 6E7-11631-00-97 |
| 7 | C3040407 | T15-01.06.28.13 | 副气环 | 2 | 2 | 682-11610-01 |
| 8 | C3040406 | T15-01.06.28.12 | 主气环 | 2 | 2 | |
| 沧龙航迹 T9.9 顶罩 | |||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 |
| 1 | C204C3060439 | T15-07.00.01 | 顶罩(喷漆) | 1 | 1 |
| 2 | C4010305 | GB/T818 | 十字槽盘头螺钉M4X14 | 2 | 10 |
| 3 | C4010510 | GB/T97 | 平垫4 | 2 | 10 |
| 4 | C3070433 | T15-07.00.03 | 前锁紧钩 | 1 | 1 |
| 5 | C4010402 | GB/T6170 | 六角螺母M4 | 2 | 2 |
| 6 | C4010411 | GB/T889 | 非金属嵌件六角锁紧螺母M4 | 2 | 2 |
| 7 | C3070505 | T20-07.00.06 | 后锁紧钩衬板 | 1 | 1 |
| 8 | C3070504 | T20-07.00.05 | 后锁紧钩 | 1 | 1 |
| 9 | C4010510 | GB/T97 | 平垫4 | 2 | 10 |
| 10 | C4010305 | GB/T818 | 十字槽盘头螺钉M4X14 | 2 | 10 |
| 11 | C3050439 | T15-07.00.02 | 橡胶密封条 | 1 | 1 |
| 12 | T20-07.00.03 | 装幁钉 | 25 | 50 | |
| C2040011 | T15-07.00.00.00 | 顶罩总成 | 1 | 1 | |
| 沧龙航迹 T9.9 水上 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3050425 | T15-05.00.07 | 水管工形橡胶圈 | 1 | 1 | 63V-44365-10 |
| 2 | C3090412 | T15-05.00.08-S | 水管（短） | 1 | 1 | 63V-44361-01 |
| C3090419 | T15-05.00.08-L | 水管（长） | 1 | 1 | 63V-44361-11 | |
| 3 | C3050426 | T15-05.00.09 | 水管上橡胶圈 | 1 | 1 | |
| 4 | C3060440 | T15-00.00.04 | 尼龙衬圈 | 1 | 1 | 90387-16002 |
| 5 | C4010406 | GB/T6170 | 六角螺母M8 | 2 | 10 | 63V-45114-A1 |
| 6 | C3070427 | T15-05.00.05 | 减震器压板 | 1 | 1 | 63V-44526-00 |
| 7 | C3050429 | T15-05.00.15 | 减震器后橡胶垫 | 2 | 2 | |
| 8 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 3 | 10 | |
| 9 | C204C3010415 | T15-05.01.00 | 双孔减震器组件(喷漆) | 1 | 1 | 63V-44514-01-5B |
| 10 | C3050428 | T15-05.00.14 | 减震器前橡胶垫 | 2 | 2 | |
| 11 | C4010507 | GB/T96 | 大平垫8 | 2 | 4 | |
| 12 | C3020420 | T15-05.00.06 | 减震器双头螺栓 | 2 | 2 | 90116-08M54 |
| 13 | C3050424 | T15-05.00.03 | 怠速孔橡胶密封块 | 1 | 1 | 63V-45126-01 |
| 14 | C3090411 | T15-05.00.04 | 减震器密封垫 | 1 | 2 | |
| 15 | C3050423 | T15-05.00.02 | 壳体橡胶密封垫 | 1 | 1 | 63V-45113-A1 |
| 16 | C3020503 | T20-02.00.13 | 定位销φ6X12 | 2 | 10 | |
| 17 | C3050427 | T15-05.00.10 | 水管下橡胶圈 | 1 | 2 | 63V-44368-00 |
| 18 | C204C3010414 | T15-05.00.01-S | 水上壳体短(喷漆) | 1 | 1 | 63V-45111-05-4D |
| 18 | C204C3010422 | T15-05.00.01-L | 水上壳体长(喷漆) | 1 | 1 | 63V-45111-15-4D |
| 19 | C4010232 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M8X30 | 6 | 6 | |
| 20 | C3090503 | T20-00.00.07 | 钢丝连接线 | 1 | 1 | 63V-82127-00 |
| 21 | C4010322 | GB/T818 | 十字槽盘头螺钉M6X10 | 1 | 10 | |
| C2040008 | T15-05.00.00.00-S | 水上总成(短） | 1 | 1 | ||
| C2040013 | T15-05.00.00.00-L | 水上总成(长） | 1 | 1 | ||
| 沧龙航迹 T9.9 水下 | ||||||
| 序号 | 物料代码 | 配件编码 | 配件名称 | 数量 | 包装/个 | 通用型号 |
| 1 | C3040414 | T15-06.00.16-S | 驱动轴（短） | 1 | 1 | 63V-45510-01 |
| C3040427 | T15-06.00.16-L | 驱动轴（长） | 1 | 1 | 63V-45510-11 | |
| 2 | C4010211 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X45 | 4 | 4 | 97080-08045 |
| 3 | C3070428 | T15-06.00.01 | 水泵固定板 | 2 | 2 | 63V-44328-00 |
| 4 | C3050430 | T15-06.00.02 | 水管密封圈 | 1 | 2 | 647-44366-00 |
| 5 | C3060435 | T15-06.00.03 | 水泵外壳 | 1 | 1 | 63V-44301-00 |
| 6 | C3070429 | T15-06.00.04 | 水泵内壳 | 1 | 1 | 63V-44322-00 |
| 7 | C3050431 | T15-06.01.00 | 水泵叶轮组件 | 1 | 1 | 63V-44352-01 |
| 8 | C3040412 | T15-06.00.05 | 水泵叶轮半圆键 | 1 | 2 | 63V-44338-00 |
| 9 | C3050432 | T15-06.00.06 | 水泵壳体O型圈 | 1 | 2 | 93210-44398 |
| 10 | C4010206 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X25 | 2 | 10 | |
| 11 | C3070430 | T15-06.00.07 | 水泵叶轮垫板 | 1 | 1 | 63V-44323-00 |
| 12 | C3050434 | T15-06.00.11 | 驱动轴下油封 | 2 | 2 | 93101-20048 |
| 13 | C3040413 | T15-06.00.12 | 水泵座含油轴承 | 1 | 1 | 90381-14020 |
| 14 | C3050433 | T15-06.00.09 | 水泵座密封条 | 1 | 1 | |
| 15 | C3020421 | T15-06.00.08 | 定位销φ4X12 | 2 | 4 | 93604-12M07 |
| 16 | C204C3010416 | T15-06.00.10 | 水泵座(喷漆) | 1 | 1 | 63V-45331-00-5B |
| 17 | C3090413 | T15-06.00.13 | 水泵座密封垫 | 1 | 2 | 63V-45315-A0 |
| 18 | C3060436 | T15-06.00.14 | 驱动轴尼龙护套 | 1 | 2 | 63V-45536-00 |
| 19 | C3040416 | T15-06.00.17 | 滚针轴承F1420 | 1 | 1 | 93315-314V8 |
| 20 | C3040417 | T15-06.00.18 | 推力圆柱滚子轴承 | 1 | 1 | 93341-41414 |
| 21 | C3040418 | T15-06.00.20 | 主动轮 | 1 | 1 | 63V-45551-00 |
| 22 | C3040415 | T15-06.00.21 | 驱动轴螺母 | 1 | 1 | 90179-08M06 |
| 23 | C3080407 | T15-01.05.04 | 上变档连杆 | 1 | 1 | 63V-44143-01 |
| 24 | C3020501 | T20-06.00.46 | 柱状螺母 | 1 | 1 | 61N-44146-00 |
| 25 | C4010404 | GB/T6170 | 六角螺母M6 | 1 | 10 | 93210-06ME6 |
| 26 | C3050504 | T20-06.00.18 | 凸轮座O型圈 | 1 | 4 | |
| 27 | C3080422 | T15-06.02.00-S | 变档凸轮杆组件（短） | 1 | 1 | 63V-44150-00 |
| 28 | C3080425 | T15-06.02.00-L | 变档凸轮杆组件（长） | 1 | 1 | 63V-44150-10 |
| 30 | C3020421 | T15-06.00.08 | 定位销φ4X12 | 2 | 10 | 93604-12M07 |
| 31 | C204C3010417 | T15-06.00.15 | 水下壳体(喷漆) | 1 | 1 | 63V-45311-01-4D |
| 32 | C4010232 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M8X30 | 4 | 4 | 97075-08030 |
| 33 | C3090504 | T20-06.00.43 | 注油口螺栓密封垫 | 1 | 2 | |
| 34 | C3020508 | T20-06.00.44 | 注油口螺栓 | 1 | 2 | |
| 35 | C4010356 | GB/T820 | 十字槽半沉头螺钉M5X20 | 1 | 10 | 90152-05M04 |
| 36 | C3060437 | T15-06.00.41 | 进水口盖A | 1 | 2 | 6G1-45214-00 |
| 37 | C3060438 | T15-06.00.42 | 进水口盖B | 1 | 2 | 63V-45215-00 |
| 38 | C4010412 | GB/T889 | 非金属嵌件六角锁紧螺母M5 | 1 | 5 | 90185-05002 |
| 39 | C3040426 | T15-06.00.43 | 水下阳极 | 1 | 2 | 61N-45251-01 |
| 40 | C4010207 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X30 | 1 | 10 | 95895-06030 |
| 41 | C3090504 | T20-06.00.43 | 注油口螺栓密封垫 | 1 | 4 | 90430-08020 |
| 42 | C3020508 | T20-06.00.44 | 注油口螺栓 | 1 | 2 | 90340-08002 |
| 43 | C3070431 | T15-06.00.22 | 正档齿轮填隙片 | 1 | 2 | 664-45567-01 |
| 44 | C3040419 | T15-06.00.23 | 圆锥滚子轴承30205 | 1 | 1 | 93332-00005 |
| 45 | C3040420 | T15-06.00.24 | 正档齿轮 | 1 | 1 | 6E7-45560-01 |
| 46 | C3020422 | T15-06.00.25 | 变档柱塞 | 1 | 1 | 650-45635-00 |
| 47 | C3080423 | T15-06.00.26 | 变档柱塞压缩弹簧 | 1 | 1 | 90501-14M06 |
| 48 | C3020507 | T20-06.00.27 | 离合器销 | 1 | 2 | 90250-05010 |
| 49 | C3080424 | T15-06.00.44 | 离合器簧环 | 1 | 1 | 648-45633-00 |
| 50 | C3040422 | T15-06.00.28 | 爪型离合器 | 1 | 1 | 682-45631-00 |
| 51 | C3040421 | T15-06.00.27 | 螺旋桨轴 | 1 | 1 | 683-45611-00 |
| 52 | C3070432 | T15-06.00.29 | 倒档齿轮垫圈 | 1 | 2 | 90201-17682 |
| 53 | C4010715 | GB/T91 | 开口销φ2.5X25 | 1 | 10 | 91490-30020 |
| 54 | C3040423 | T15-06.00.30 | 倒档齿轮 | 1 | 1 | 6E7-45571-00 |
| 55 | C3040424 | T15-06.00.31 | 深沟球轴承6005 | 1 | 1 | 93306-00501 |
| 56 | C3050435 | T15-06.00.32 | 壳体盖前O型圈 | 1 | 4 | 93210-56M80 |
| C204C3010418 | T15-06.00.33 | 水下壳体盖(喷漆) | 1 | 1 | 683-45361-02-4D | |
| 58 | C3050436 | T15-06.00.35 | 壳体盖后O型圈 | 1 | 4 | 93210-57M09 |
| 59 | C4010205 | GB/T9074.14 | 六角头螺栓和平垫圈组合件M6X20 | 2 | 4 | 97095-06020 |
| 60 | C3040425 | T15-06.00.34 | 滚针轴承17BM2312 | 1 | 2 | 93315-317U2 |
| C2040012 | T15 | 螺旋桨总成 | 1 | 1 | 683-45941-00-EL | |
| 61 | C3050437 | T15-06.00.36 | 螺旋桨轴油封 | 2 | 2 | 93101-17054 |
| 62 | C3020423 | T15-06.00.37 | 螺旋桨垫块 | 1 | 1 | 6E7-45987-01 |
| C2040012 | T15 | 螺旋桨总成 | 683-45941-00-EL | |||
| 63 | C3050438 | T15-06.03.00 | 内花键组件 | |||
| C2040009 | T15 | 螺旋桨组件(喷漆) | ||||
| 64 | C3010419 | T15-06.00.38 | 螺旋桨 | |||
| 65 | C3010420 | T15-06.00.39 | 螺旋桨喇叭口 | |||
| 67 | C3020424 | T15-06.00.40 | 开槽六角螺母 | 1 | 1 | 90201-10M01 |
| C2040004 | T15-06.00.00.00-S | 水下总成（短） | 1 | |||
| C2040014 | T15-06.00.00.00-L | 水下总成(长） | 1 | |||
